A STEP assembly goes in. A full drawing package comes out.
Partnership terms32Studio is a web tool for mechanical engineering. A STEP assembly from any CAD goes in. The bill of materials, the assembly drawing and a separate sheet for every part come out, in DXF and PDF.
A real object, a production hangar frame, came out as 340+ sheets in 47 minutes. See the case
One run on a public test assembly, timer on screen, no cuts. Captions burned in, sound optional. Test assembly: a public open-source assembly. Not a customer part. The title block is blanked on purpose.
Real object

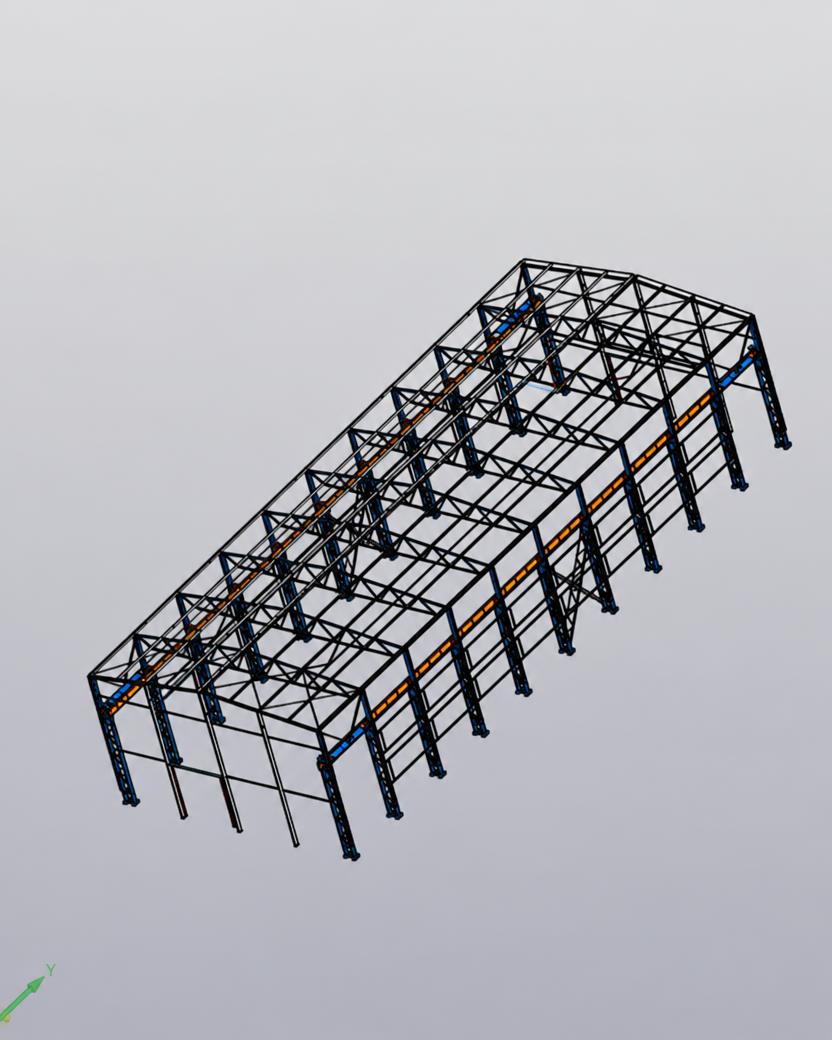

A production hangar frame, every member on its own sheet.
- Editable sheets
- 340+DXF and PDF, one per member
- 32Studio, the whole frame
- 47minA design engineer by hand: 2 months
- Errors
- 0In 340+ sheets
Compared
There is no direct equivalent. The two closest tools are below, feature by feature.
| Feature | 32Studio | Autodesk Fusion, automated drawings | DraftAid |
|---|---|---|---|
| A STEP assembly from any CAD goes in | Yes | YesAfter import into Fusion | YesSTEP, through a SolidWorks or Inventor plugin |
| Assembly drawing and bill of materials | Yes | YesParts list and balloons | NoParts; assemblies in beta |
| Finished sheets, nothing to tidy by hand | Yes | NoTidied up in Fusion after | NoFinished in SolidWorks or Inventor |
| No CAD seat, nothing to install | Yes | NoThe Fusion app, on subscription | NoA plugin inside SolidWorks or Inventor |
| Editable DXF and PDF out | Yes | YesPDF, DWG, DXF | YesNative drawings, DWG, DXF, PDF |
| Your model is deleted after the run | Yes | NoDesigns live in Autodesk's cloud | Not publishedNot published |
| What it costs | Nothing, for a partner | A Fusion subscription | An annual license by drawing volume |
Facts about the other two come from their own pages and published interviews.
Partnership
We are looking for one partner to teach 32Studio your drafting standard. One engineer is enough.
It can be you alone or your whole design department. You show us how your sheets should look, we make the engine draw that way, and you keep the result at no charge. That is why the letter came to you.
How it goes
-
01
Send one assembly
A STEP file and the finished 2D drawings made for it.
-
02
We run it through 32Studio
The service draws the whole assembly, and the sheets come back to you.
-
03
You mark what is wrong
A few rounds like this, until the sheets match your standard.
- A full NDA, on your paper if you prefer, signed before the assembly is sent.
- One assembly you are free to share, sent after the call, only if you go ahead.
- The storage location is named in the NDA. Opened by three people on the product team.
- Used only to make the engine draw to your standard. Never a demo or a sample without your written OK.
- Deleted when the rounds end, or earlier when you say so, confirmed in writing.
- Files you open in the tool yourself go to the engine, whose location the NDA also names, and are removed after the run.
If your compliance person wants this in writing before the call, write to ravil@32studio.io.
What you get
Your own version of 32Studio, at no charge.
- Sheets in your standard: projection, units, title block, notes
- For you alone, or for your whole team
- Other terms are open to discussion
Hours saved a month
56h
About 7 working days of a design engineer, back every month.
One sheet takes 7 min by hand and 17 s in 32Studio. Multiply the hours by what a drafting hour costs you.
Who we are
The tool started as a fix for our own drafting backlog.
32Studio is built by six people: design engineers, programmers and a mathematician who came from mechanical design and drafting. A version for your drafting standard does not exist yet, which is why we write to people who draw to it every day. The contracting party and its registry details are named in the NDA, before any assembly is sent.
